Fender System

D FENDERS – DD TYPE
DD FENDERS are most widely used fenders around
the world for application like protection tug boats,
small jetties and wharfs. Various sizes available DD50,DD75,DD100,DD125,DD150,DD200,DD250, DD300,DD400,DD450,

DD500 and other sizes can
supply as per costumer requirement.

DO FENDERS
DO fenders are very popular in the new vessel
building industry due to ease fixing these fenders
in the sides of the vessels without drilling on the
vessel shell. various sizes available DO100,DO125,DO150,DO175,DO200, DO250,DO300, D0350,DO400, DO450,DO500
and other sizes can supply
as per customer requirement.

SQUARE FENDERS
SQUARE FENDERS present a popular alternative to D type fenders where a more heavy duty performance is
required. These fenders can be mounted on boats and tugs in straight as well as curved form. Holes for fixing
the fenders can be drilled as per requirement.These fenders classified in to two types

SO FENDER
Available sizes SO200, SO250, SO300, SO350, SO400,SO450,SO500.
SD FENDER
Available sizes SD200,SD250,SD300,SD350,SD400,SD450,SD500
Other sizes supplied as per customer’s requirements.

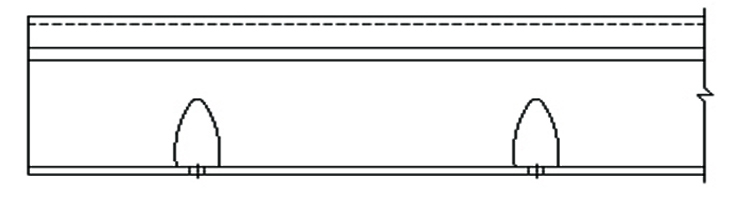

SQUARE FENDERS KEY HOLE TYPE
With key hole shaped inner bore have the flexibility to adjust the width to enable easy fixing. The fenders are
mainly used for pushing large vessels; it can also be installed on curved structures and round corners.Available sizes –SQK200, SQK250, SQK300, SQK35O and other sizes as per customer requirements.

CYLINDRICAL BOW & AFT FENDERS
W FENDERS
These fenders can be mounted using chain passing thro’ the
centre hole and supported by nylon straps or chain passing
thro’ the grooves. It is recommended to use chains covered
with rubber hose in the grooves.
Alternative to square fenders and are easy to install.

WING FENDERS
Easy installation on vessels
and concrete structures .using small jetties,
pleasure crafts,pilot boats,barges and tug boats.Available sizes – 4’’ ,6’’, 8’’ , 10’’, 12’’ , 14’’ , 16’’
and other sizes as per customer requirements.

TRAPEZOIDAL FENDERS
Wing type
Closed type
CYLINDRICAL FENDERS
This is the most popular fender system
around the world due to their simple
construction and easy installation. Small
outer diameter for use by a small boats
and big outer diameter for use by a oil
super tanker . The fenders can be installed
horizontally or vertically.
Size outer diameter starts
from 100 mm to 2100mm and
inner diameter starts from 50
mm to 1250 mm.
ARCH FENDERS VA TYPE
Can be used for small marinas with non marking type VLA fenders
for luxury yatches and GRP vessels. Arch fenders with UHMW PE
facing also useful where the vessel continues to move perpendicular
to the fender after berthing thereby inducing shear stresses on thefender.

VLA TYPE
CELL FENDERS
This is designed based on the axial loading performance of cylindrical fenders with steel embedded within
the rubber. Cell fenders can be used a single fender or combination of more fenders fixed to one steel facing
panel. Cell fenders can be used only by using steel panel to reduce the face pressure acting on the hull of the
berthing vessel.
CONE FENDERS
CONE FENDERS are the latest version of fenders developed based on the cell fenders, but increased
deflection and high energy absorption. Cone fenders
have to be used along with steel facing panel fitted
with UHMW PE pads.
ELEMENT LEG FENDERS
ELEMENT LEG FENDERS are unique type of fenders
in view of their construction, manufacturing process
and performance. These fenders have a law reaction
force and high energy absorption characteristic. Each
size of element leg fender is available in different
lengths as well as different grades to provide solution
for most fender requirements.
